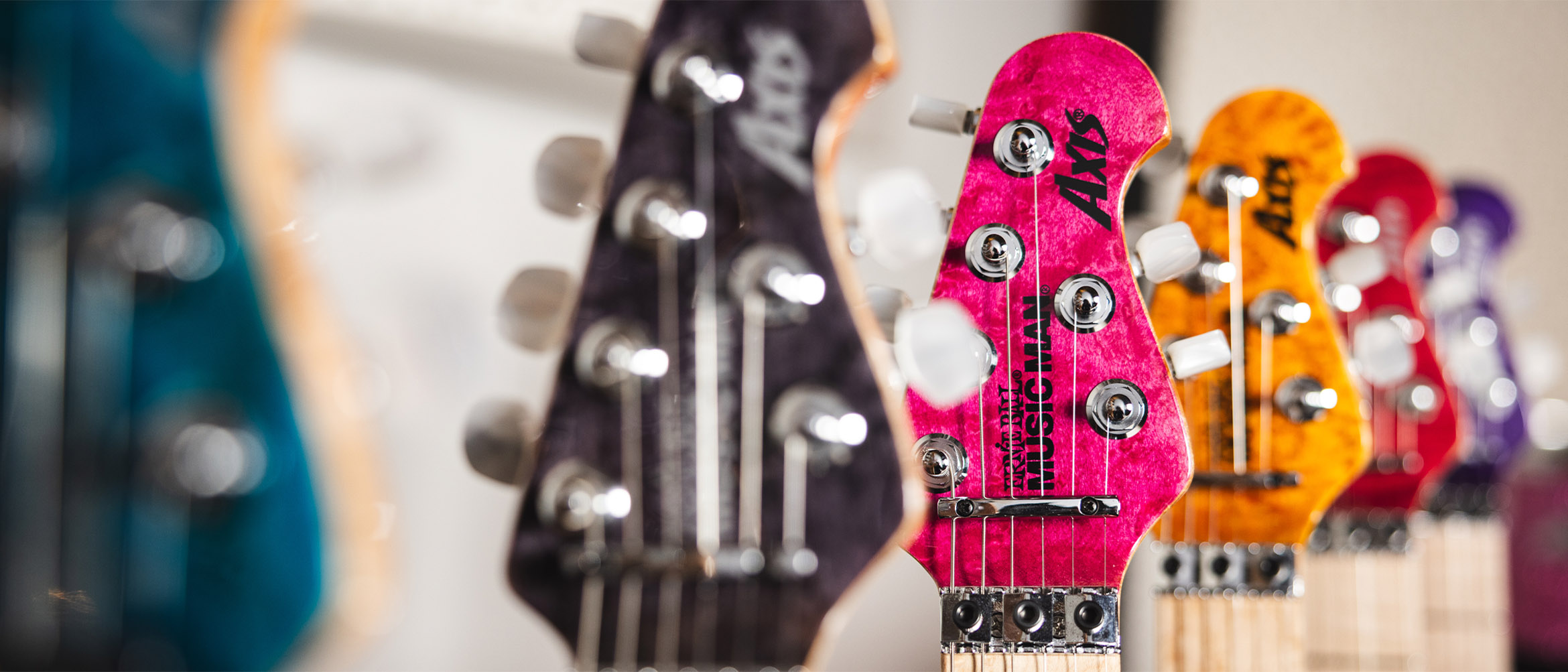

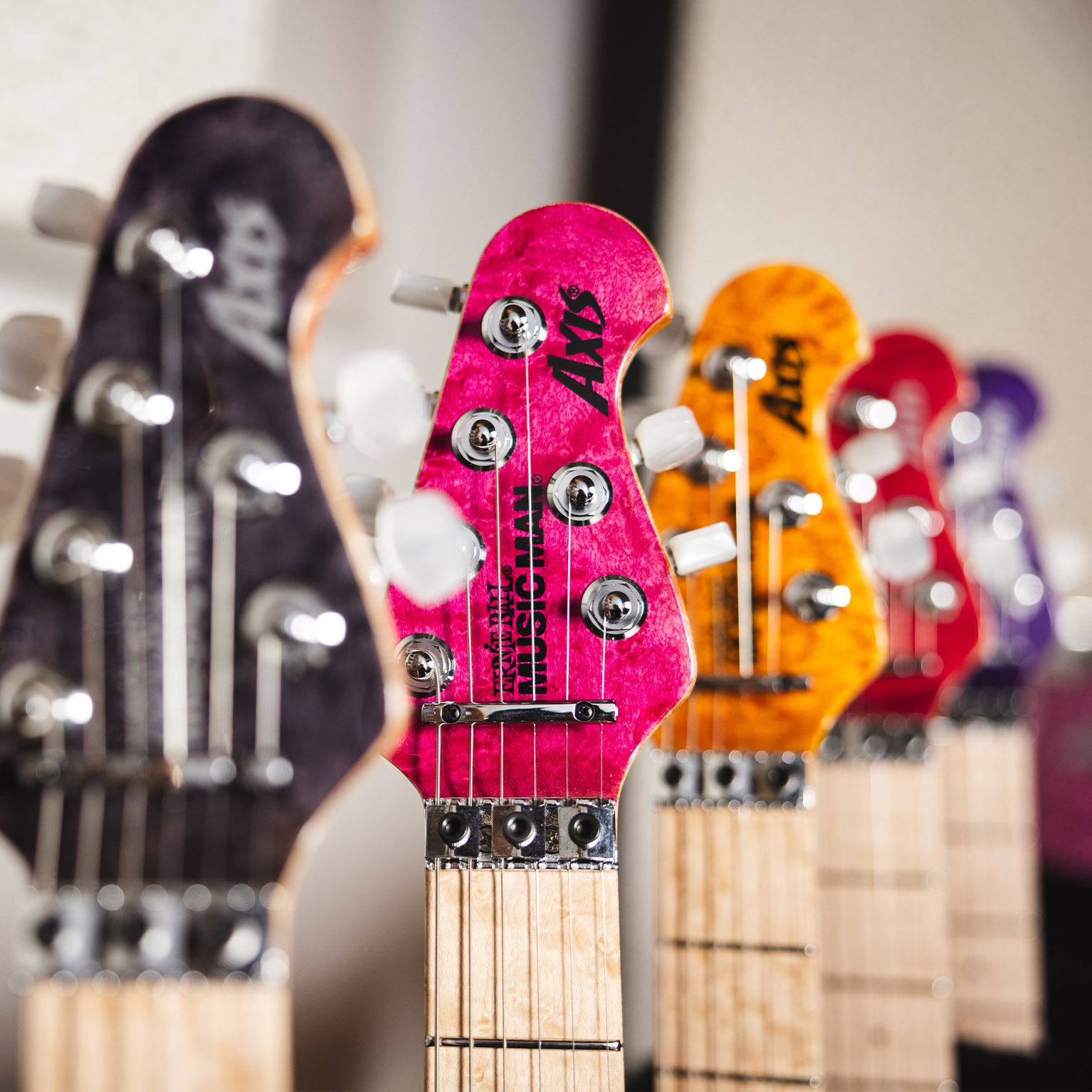

Celebrating 30 years of the Axis, this limited edition collection revisits the iconic translucent finishes of its 1996 debut. Each hand stained quilt maple top, available in Gold, Black, Pink, Red, Blue, and Purple, is paired with a black, lightly sparkled back that subtly echoes the top’s hue. Built to the original specs, these guitars feature the classic asymmetrical neck carve, 22 stainless steel frets, and glow in the dark side dots on a figured maple neck. Equipped with the legendary custom wound DiMarzio® pickups and finished with a color matched headstock and a commemorative 30th Anniversary logo, each instrument includes a certificate of authenticity and a deluxe hardshell case.

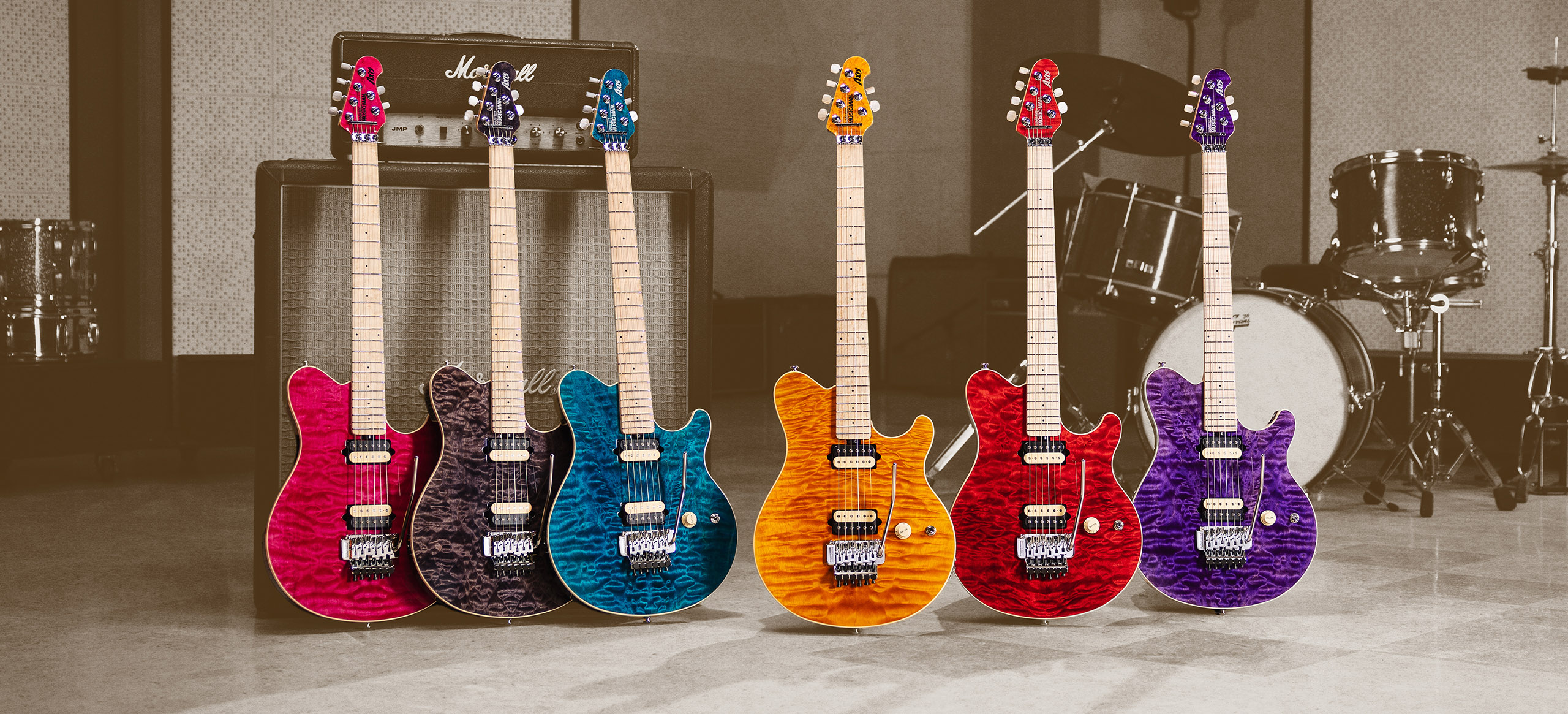

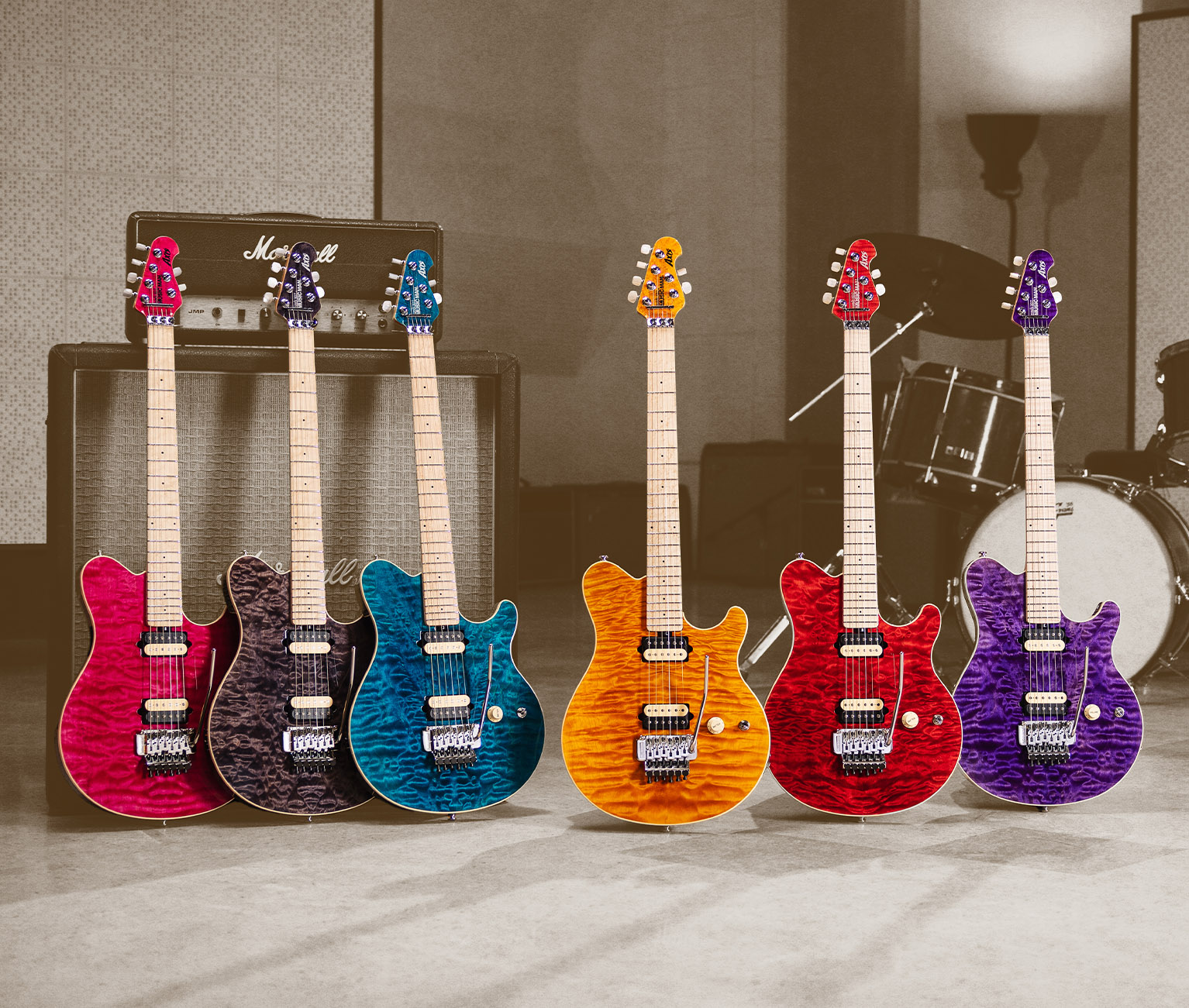

Translucent Gold
Translucent Black
Translucent Blue
Translucent Pink
Translucent Purple
Translucent Red

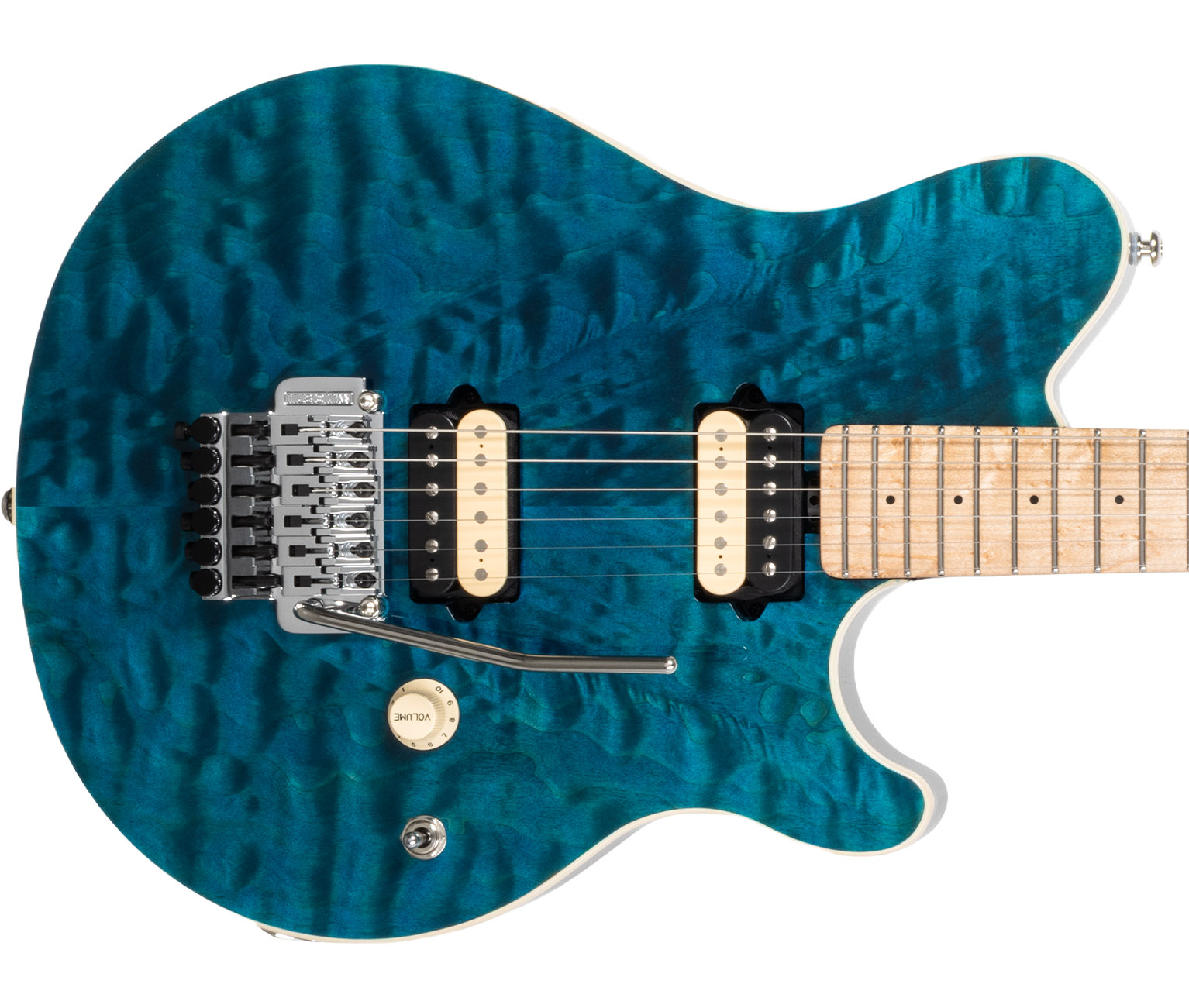

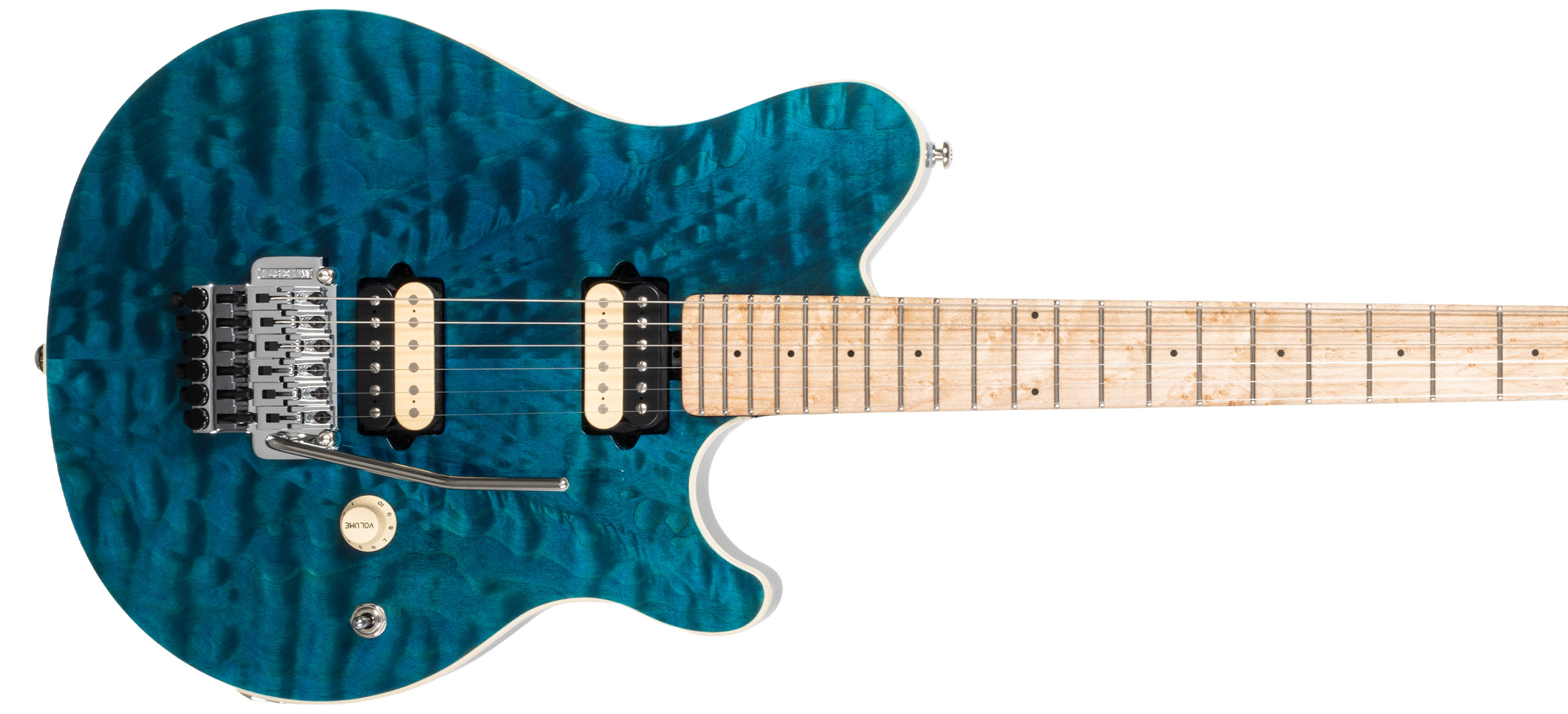

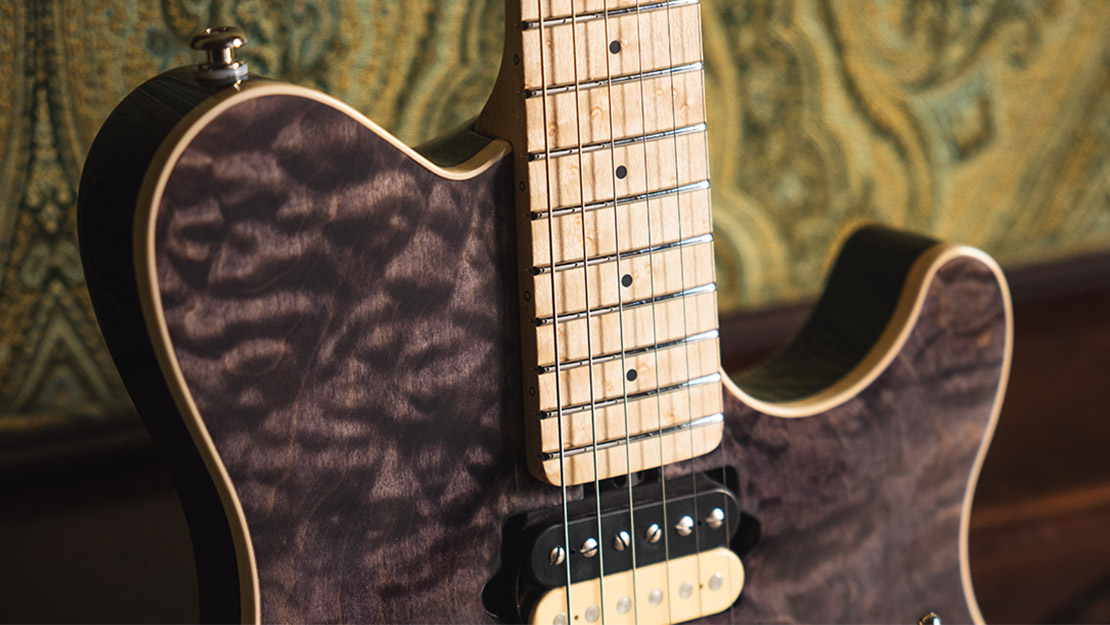

The Axis 30th Anniversary guitar features a perfectly balanced, single cutaway body design that allows unparalleled access to all 22 stainless steel frets. The figured maple neck with an asymmetric custom neck carve provides an ultra comfortable playing experience.
The back profile thickness is off center toward the bass side of the neck and thins out toward the treble side, allowing for a more comfortable playing experience under the fingertips.

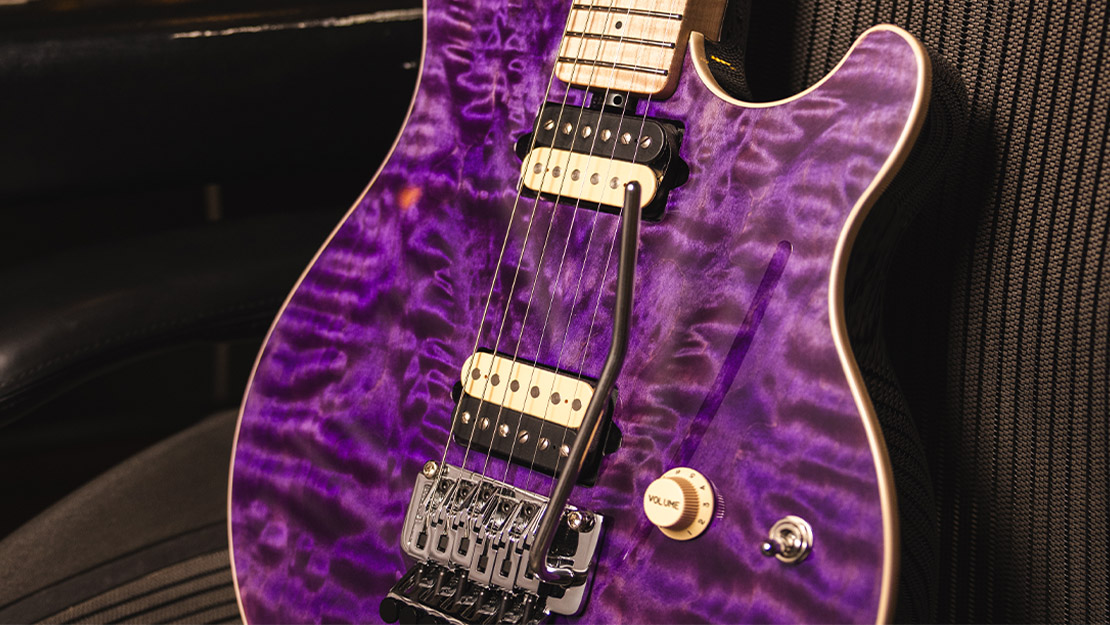

Proprietary humbucking pickups are custom designed for the Axis guitar.

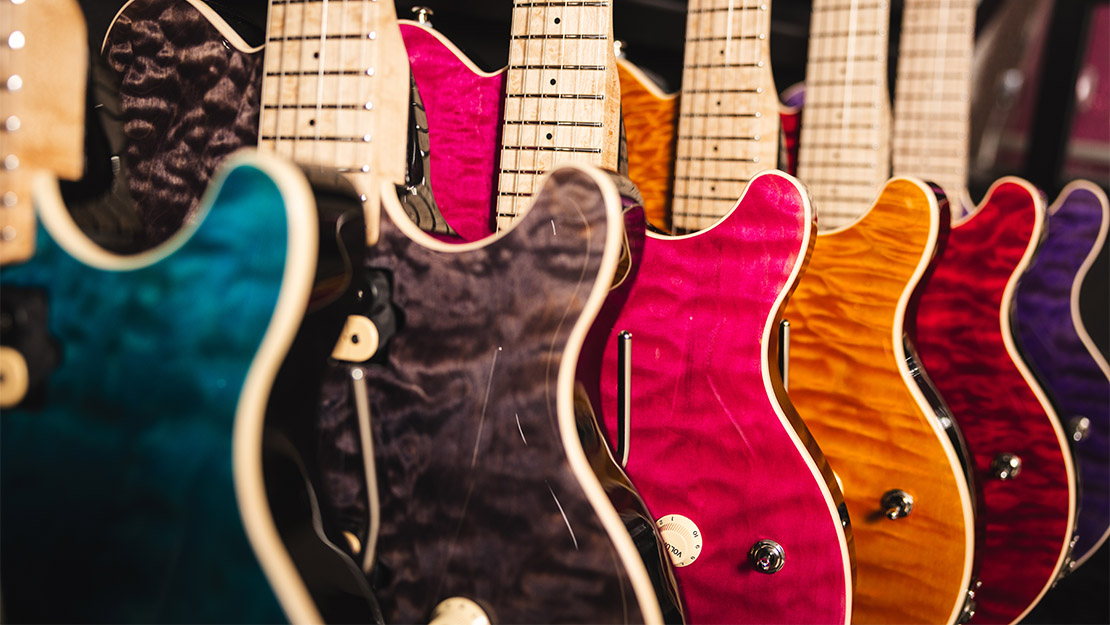

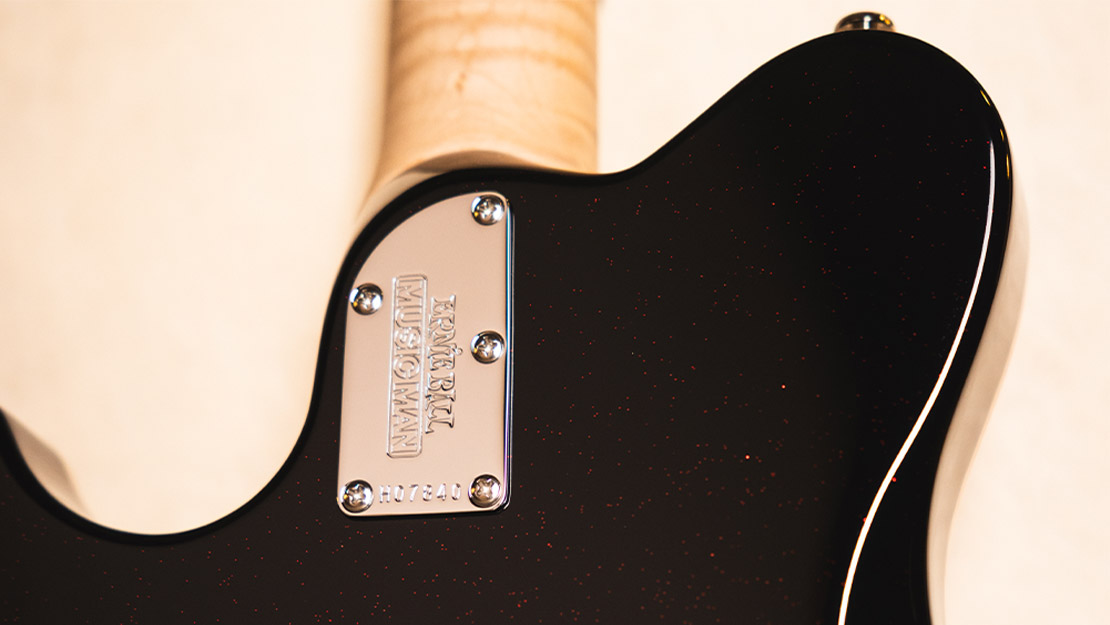

Each hand stained quilt maple top is paired with a black, lightly sparkled back that subtly echoes the top’s hue.
Limited worldwide production: 120 Gold; 100 each Black, Pink, Purple, Blue and Red.
Hand selected body and neck woods are sustainably sourced from our network of hardwood suppliers worldwide. Basswood and maple tonewoods are individually chosen and matched for their beautiful appearance and rich tonal qualities.
| Especificaciones | 30th Anniversary Axis |
|---|---|
| Modelo | 30th Anniversary Axis |
| Dimensiones | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) |
| Madera del cuerpo | Basswood with Quilt Maple Top |
| Acabado del cuerpo | High Gloss Polyester |
| Colores del cuerpo | Translucent: Black, Blue, Gold, Pink, Purple, Red |
| Bindings del cuerpo | Cream |
| Puente | Music Man® double locking tremolo with fine tuners; lowers pitch only |
| Golpeador | None |
| Longitud de escala | 25-1/2" (64.8 cm) |
| Radio del mástil | 10" |
| Tamaño de la pala | Only 5-7/8" (14.9 cm) long |
| Trastes | 22 - High profile, medium width stainless steel |
| Ancho del mástil | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret |
| Madera del mástil | White Figured Maple |
| Diapasón | Figured Maple |
| Marcadores de posición | Dot |
| Acabado del mástil | Gunstock oil and hand-rubbed special wax blend |
| Colores del mástil | Natural; Headstock Matches Body |
| Binding del mástil | Cream |
| Clavijeros | Schaller M6LA with pearl buttons |
| Barra de tensión | Adjustable - no component or string removal |
| Unión mástil-cuerpo | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| Hueco para la electrónica | Graphite acrylic resin coated body cavity and aluminum lined control cover |
| Controles | 500kohm volume pot, 3-way toggle pickup selector |
| Selector de pastillas | 3-way toggle pickup selector |
| Pastillas | HH - 2 DiMarzio custom humbucking |
| Versión para zurdos | No |
| Cuerdas | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
id => 133
iid => 133
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2026-04-06 08:10:21
updated_at => 2026-04-06 08:10:21
| Especificaciones | 30th Anniversary Axis | |
|---|---|---|
| Model | 30th Anniversary Axis | |
| Order | 0 | |
| Size | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) | |
| Body Wood | Basswood with Quilt Maple Top | |
| Body Finish | High Gloss Polyester | |
| Body Colors | Translucent: Black, Blue, Gold, Pink, Purple, Red | |
| Body Bindings | Cream | |
| Bridge | Music Man® double locking tremolo with fine tuners; lowers pitch only | |
| Pickguard | None | |
| Scale Length | 25-1/2" (64.8 cm) | |
| Neck Radius | 10" | |
| Headstock Size | Only 5-7/8" (14.9 cm) long | |
| Frets | 22 - High profile, medium width stainless steel | |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret | |
| Neck Wood | White Figured Maple | |
| Fingerboard | Figured Maple | |
| Fret Markers | Dot | |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | Natural; Headstock Matches Body | |
| Neck Binding | Cream | |
| Tuning Machines | Schaller M6LA with pearl buttons | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets | |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined control cover | |
| Controls | 500kohm volume pot, 3-way toggle pickup selector | |
| Switching | 3-way toggle pickup selector | |
| Pickups | HH - 2 DiMarzio custom humbucking | |
| Left Handed | No | |
| Strings | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
