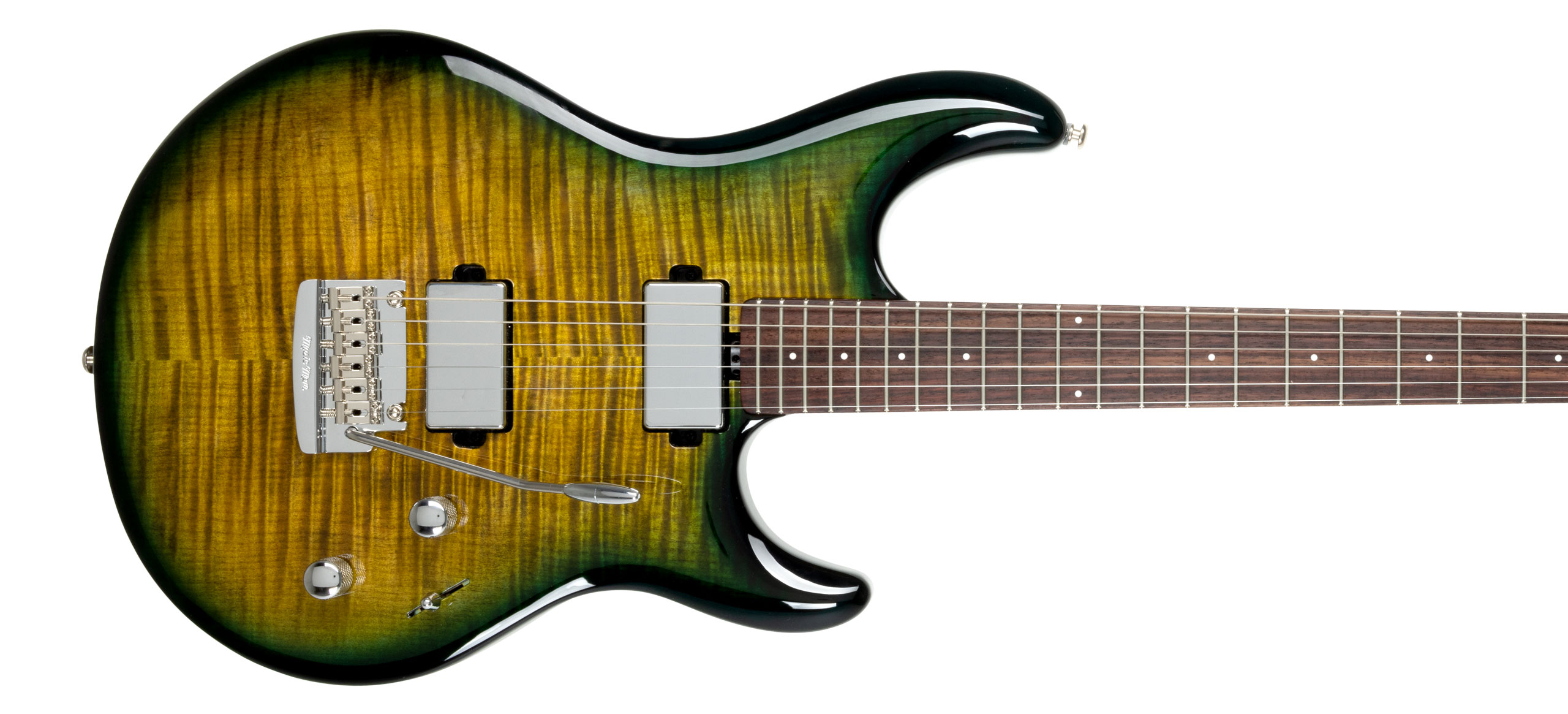

Celebrating three decades with Grammy award-winning guitarist and signature artist Steve Lukather, the Ernie Ball Music Man company is proud to announce the arrival of the new Luke 4 HH maple top signature guitar. This fourth installment in the Lukather signature line of instruments features a lightweight Okoume body, a premium figured maple top with a figured roasted maple neck, and a rosewood fingerboard. The Luke 4 maple top is outfitted with custom Music Man pickup technology, delivering an incredibly dynamic and responsive playing experience. The pickups can achieve an ultra-high-output, powerful, low-end response while retaining a distinctively clean, clear tone at lower volume levels. The Luke 4 HH shares many of the standard specifications of the original Luke guitars, including a double-cut contoured body, a roasted figured maple neck, 22 nickel frets, 5-way switching, adjustable 12db boost, a Music Man vintage floating tremolo and ships in a Mono case.

Luke 4 HH Logo

OPCIONES DE CUSTOMIZACIÓN

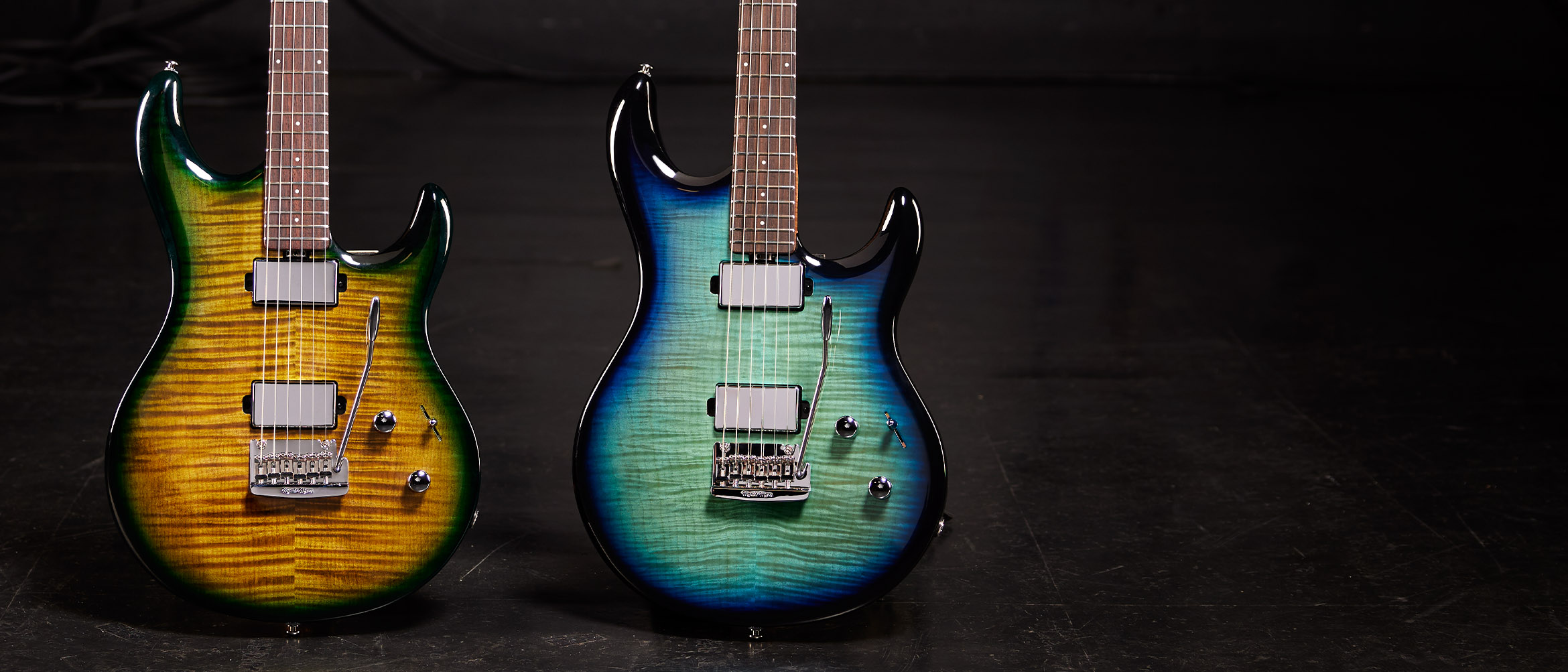

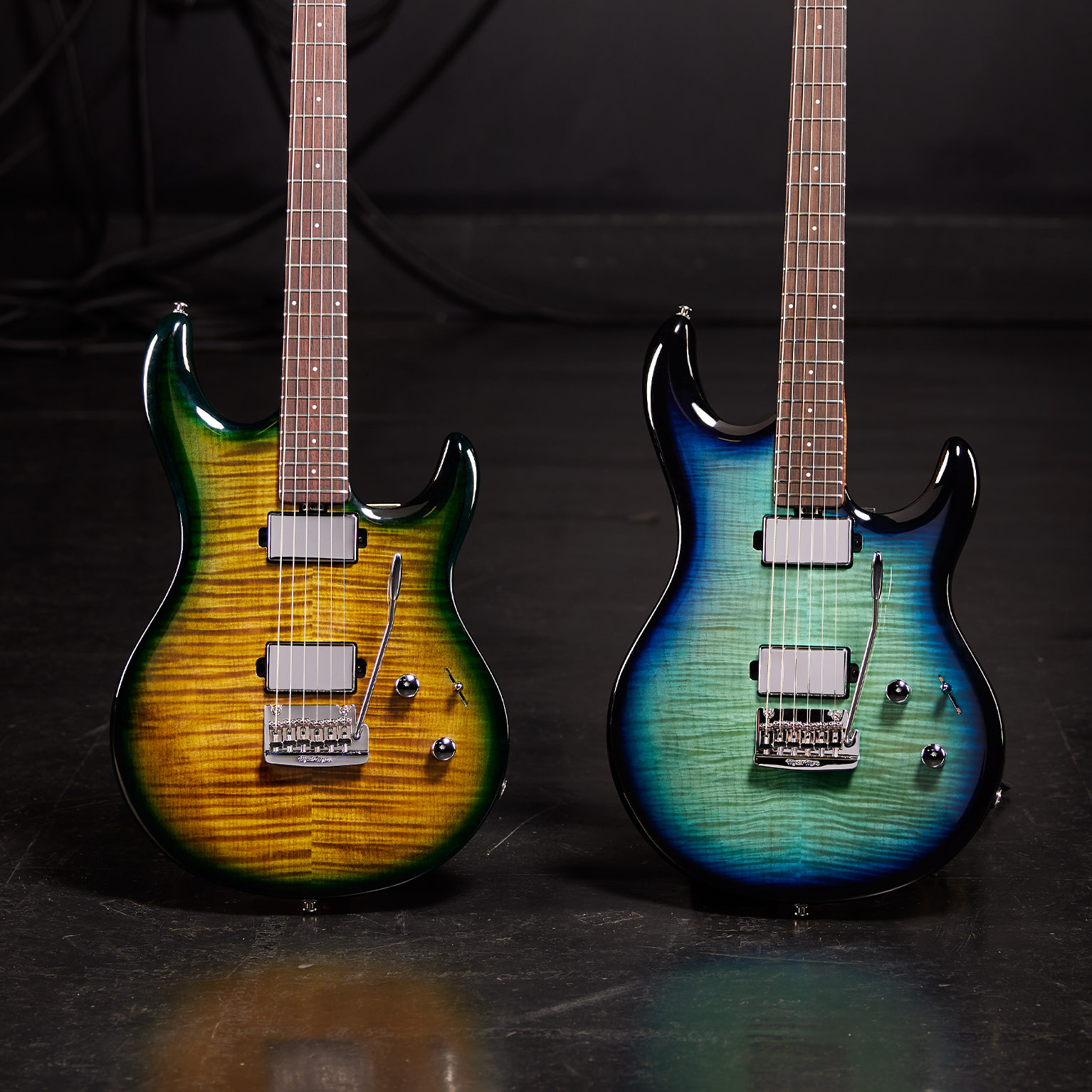

Gator Burst

Blue Dream

Sus opciones de configuración:

Modelo:
Color:
Mástil:
Golpeador:
Herrajes:

Código de cliente
000-00-00-00

Luke 4 HH Características principales

Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Highlight
Lightweight Okoume body and maple top with polyester finish
Luke 4 HH Highlight
Crafted with a roasted maple neck, rosewood fingerboard, and 22 nickel frets
Luke 4 HH Highlight
Equipped with an adjustable 12db boost and 5-way switch for more tonal diversity

INSPIRED BY OVER A DECADE OF ELECTRIC GUITAR STRING RESEARCH

HT pickup technology is a new material-based innovation made possible by principles and insights learned from the research and development of Cobalt and M-Steel string technology.

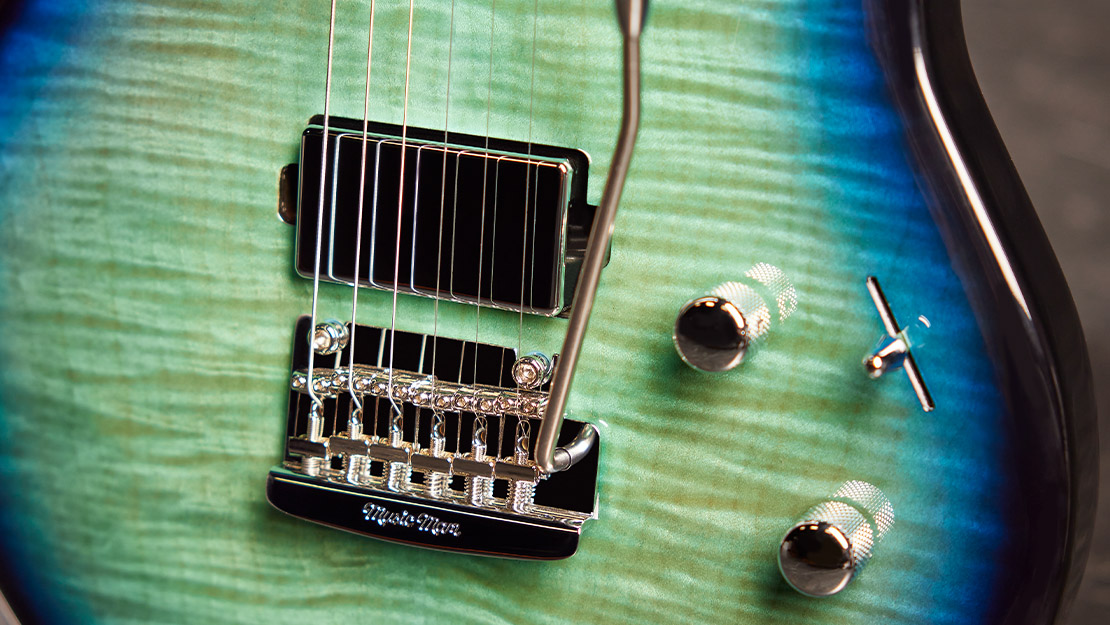

HT Humbucking Bridge Pickup

The Luke 4 HT bridge pickup outperforms regular spec pickups with ultra-high output, more dynamic range, and excellent touch sensitivity. The pickup garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

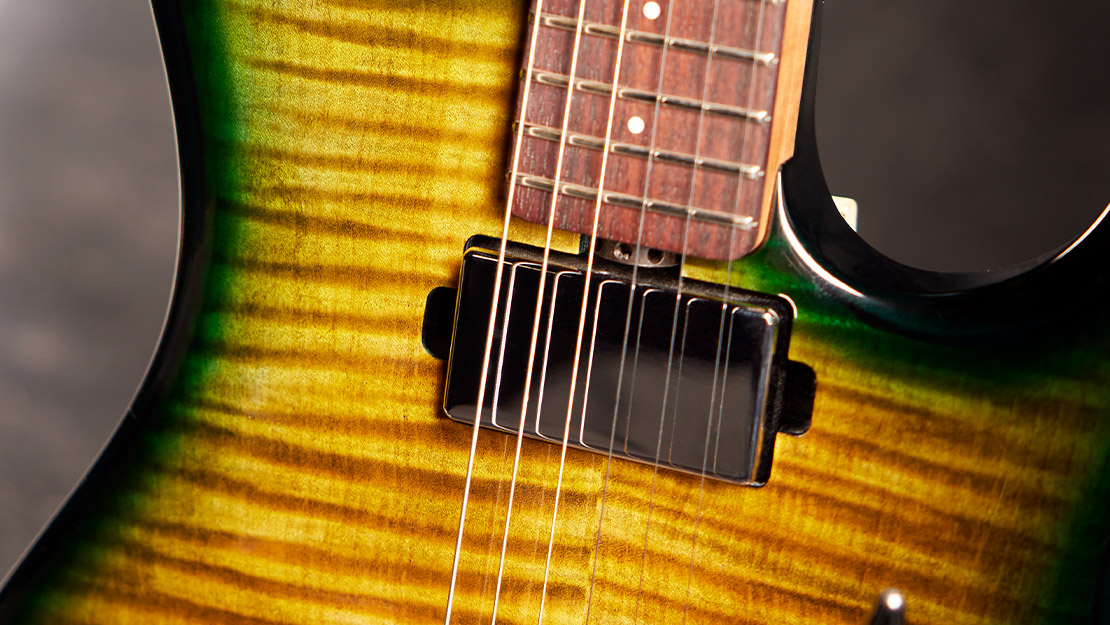

Humbucking Neck Pickup

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Luke 4’s bridge pickup.

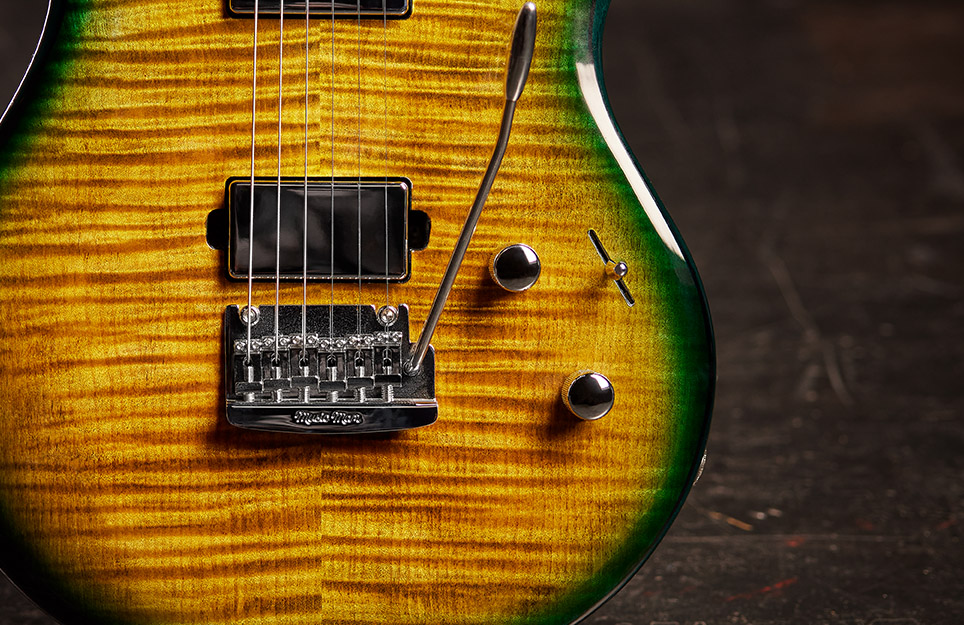

Push Push Boost Circuit

A push-push volume knob activates the Luke 4 HT preamp boost and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high-octane soloing whenever the user chooses.

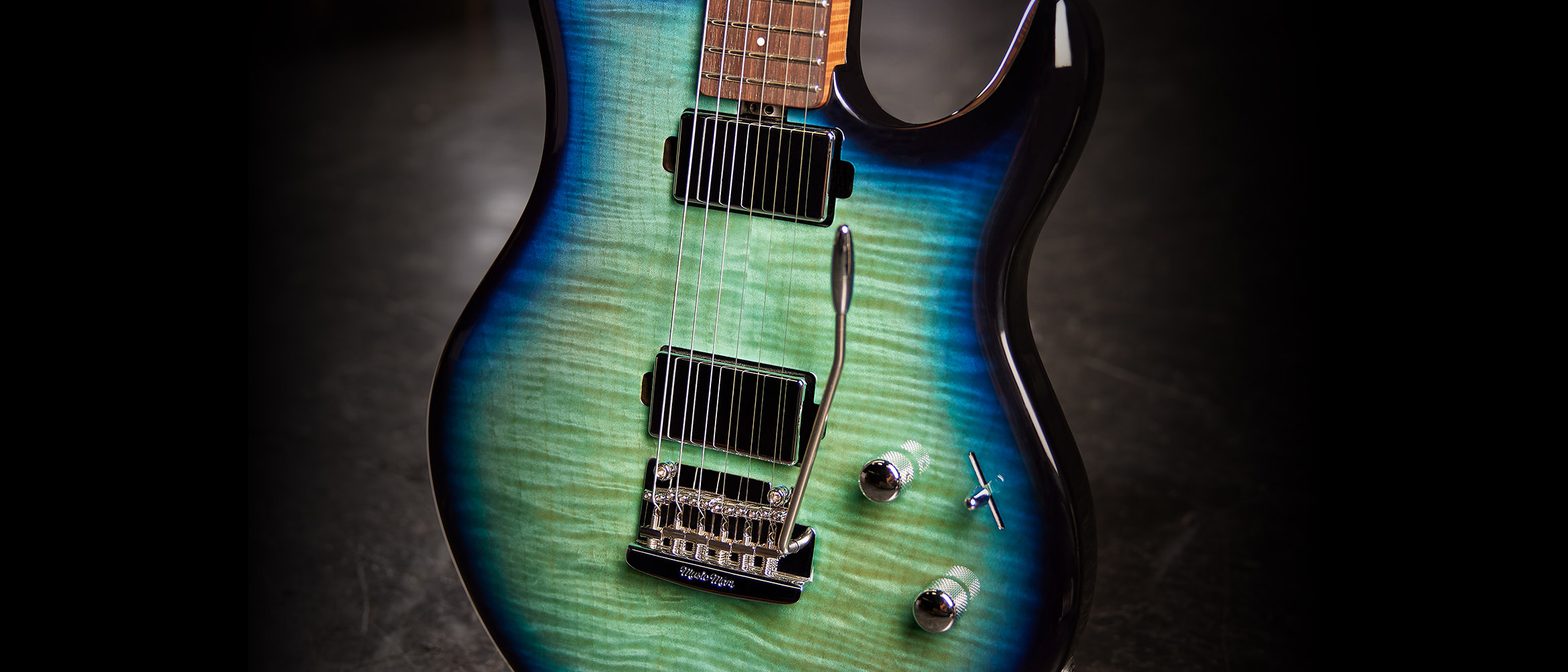

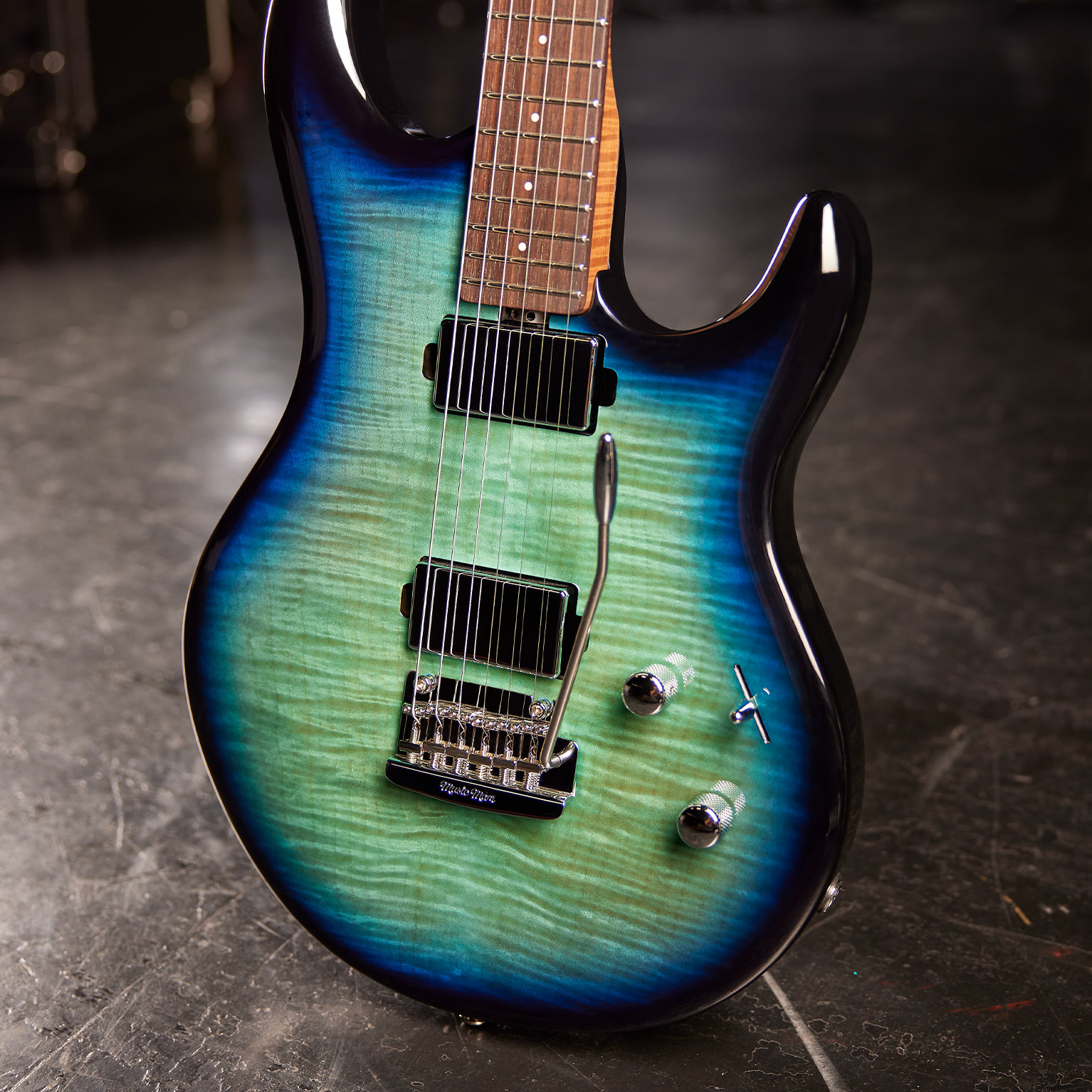

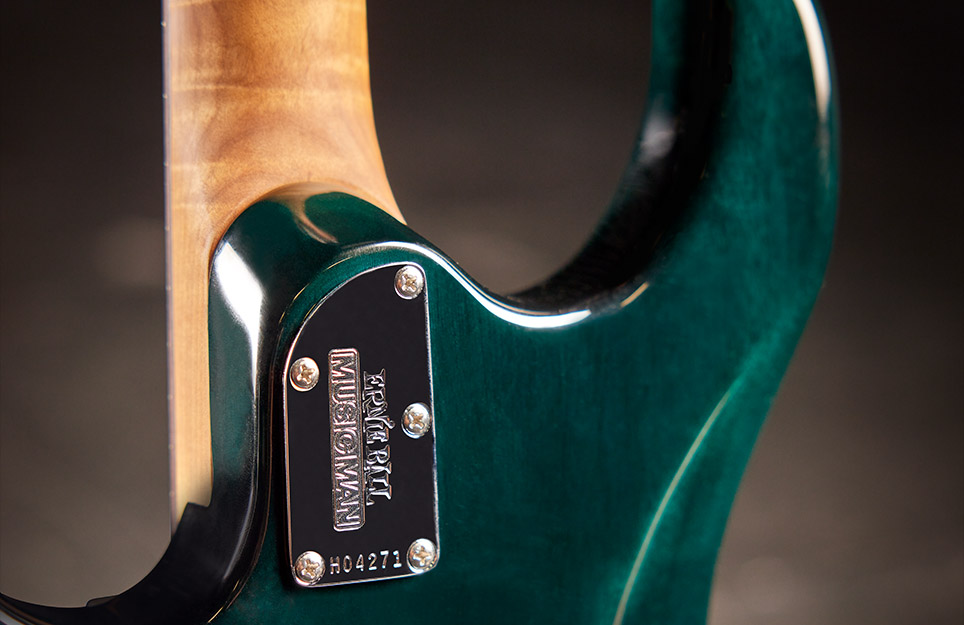

Designed to Perfection

The Luke 4's double-cutaway design features a balanced, resonant Okoume body for extreme playing comfort. The premium roasted maple neck is beautifully figured and features a soft "V" profile that comfortably fits in the palm of your hand.

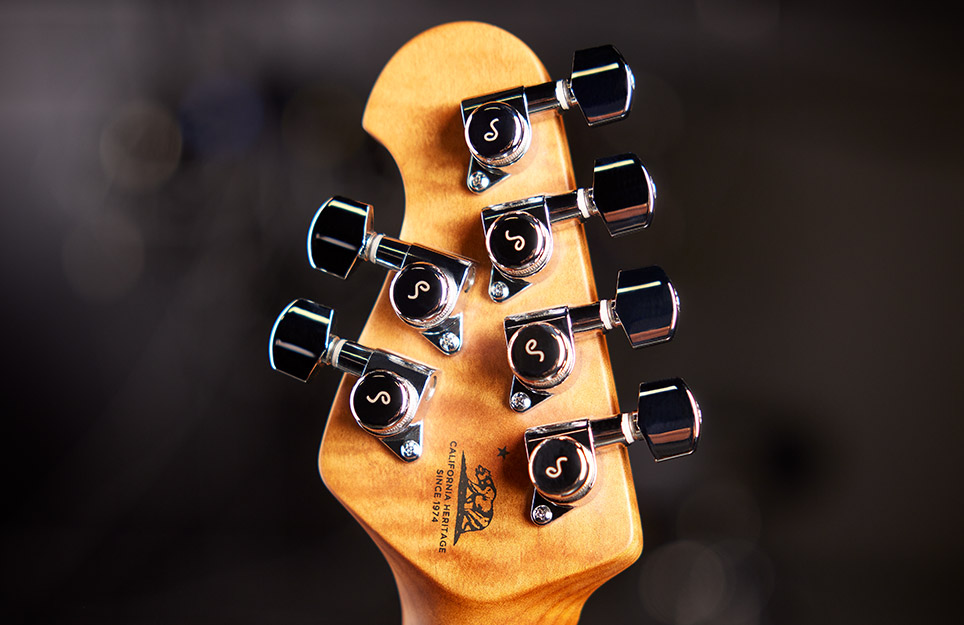

Schaller Locking Tuners

The Luke 4 features Schaller M6-IND locking tuners in Chrome.

Especificaciones, esquemas de configuración y más

Especificaciones Luke 4 HH Maple Top
Modelo Luke 4 HH Maple Top
Dimensiones 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Madera del cuerpo Okoume with Flame Maple Top
Acabado del cuerpo High gloss polyester
Puente Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Longitud de escala 25.5"
Radio del mástil 12"
Trastes 22 - Low profile, wide - Nickel
Ancho del mástil 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Madera del mástil Figured Roasted Maple
Diapasón Rosewood
Marcadores de posición White Corian 1/8" Dots
Acabado del mástil Gunstock oil and hand-rubbed special wax blend
Clavijeros Schaller M6-IND locking
Barra de tensión Adjustable - no component or string removal
Unión mástil-cuerpo 5-bolt, sculpted neck joint
Hueco para la electrónica Graphite acrylic resin coated body cavity and aluminum control cover
Controles Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Selector de pastillas Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Pastillas Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker
Cuerdas Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 111

iid => 111

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2023-09-13 14:18:54

updated_at => 2023-09-13 14:18:54

Especificaciones Luke 4 HH Maple Top
Model Luke 4 HH Maple Top
Order 0
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Okoume with Flame Maple Top
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Pickguard
Scale Length 25.5"
Neck Radius 12"
Headstock Size
Frets 22 - Low profile, wide - Nickel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Neck Wood Figured Roasted Maple
Fingerboard Rosewood
Fret Markers White Corian 1/8" Dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5-bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Switching Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Pickups Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker
Left Handed
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
